APPLIED MEMBRANES, INC. 4x40 Commercial RO Membrane Housing | Stainless Steel RO Pressure Vessel for 4" x 40" RO, UF, NF, MF Membrane Element | 300 PSI | End Clamp Style | PV4040SSAW-316
Product details
| Management number | 218578734 | Release Date | 2026/05/03 | List Price | US$153.12 | Model Number | 218578734 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

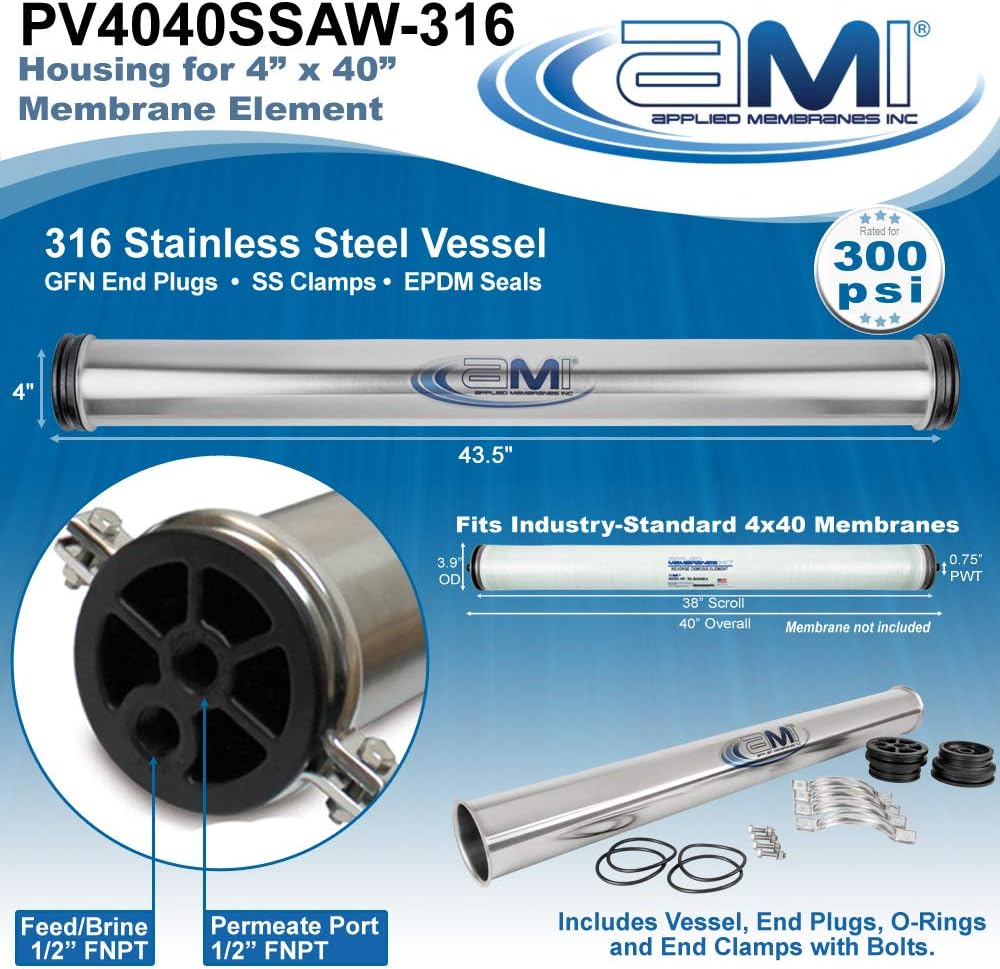

Applied Membranes Stainless Steel Membrane Housing to fit 4” x 40” Standard Membrane Element. Replacement Pressure Vessel for Commercial RO System and NF, UF, MF Membrane Water Treatment System AMI 316 SS pressure vessels for housing 4040 membrane elements offer high operating pressure which allow you to take full advantage of the membrane capability. Stainless steel membrane pressure vessels are considered safer and more reliable than PVC membrane pressure vessels. Designed for direct connection to industry-standard 4x40 membrane elements with 3/4" male product water tubes (stinger style). The End-Clamp style end closures are designed for ease of installing and replacing membrane elements, with standard ½" FNPT threaded connections: no special fittings required. Each membrane housing is individually inspected for quality assurance. Each membrane housing is sold complete with End Plugs, Clamps with bolts, and O-Rings. Mounting pads and straps are sold separately. 4x40 Pressure Vessel Specifications - Applied Membranes Part #: PV4040SSAW-316- For Membrane Size: 4x40 (3.9” Dia. x 40”L with 3/4” male PWT) - Operating Pressure: 300 PSI (20 Bar) Maximum- Vessel Dimensions: 4" Dia. x 43.5" Length (10.2 cm Dia. x 110.5 cm Length) - In/Out Connections: 1/2" FNPT Feed, Brine, and Product - Configuration:End Entry- End Closures:Clamp-on (end clamp style)- Materials:316 Stainless Steel Body, GFN End Plugs, SS Clamps
- <b>300 PSI Maximum Operating Pressure:</b> Allows you to take full advantage of the membrane capability.
- <b>Versatile:</b> Exceptional Performance in Commercial Reverse Osmosis RO Systems, Nanofiltration NF Systems, Microfiltration MF, and Ultrafiltration UF Membrane Water Treatment Applications.
- <b>Standard Size:</b> Fits Industry-Standard 4” x40” Membrane Elements including Applied Membranes, FilmTec, Hydranautics, and any standard 4x40 membrane with 3/4" male PWT.
- <b>Strong & Reliable:</b> 316 Stainless Steel Shell with GFN End Caps, Stainless Steel End Clamps, and EPDM seals.
- <b>Complete Assembly:</b> Each vessel is supplied with the stainless steel vessel shell, two end plugs, clamps with bolts, and O-rings.
| Set Name | 4x40 |
|---|---|
| Brand Name | APPLIED MEMBRANES INC. |
| Unit Count | 1.0 Count |
| Manufacturer | APPLIED MEMBRANES INC. |
| Model Number | PV4040SSAW-316 |
| Material Type | Membrane Housing End Clamp |
| Number of Items | 1 |
| Product Benefits | Enhances water filtration performance with high-pressure capability and durable materials |
| Included Components | Vessel Shell, End Plugs, Clamps with bolts, O-Rings |
| Manufacturer Part Number | PV4040SSAW-316 |
| Item Dimensions D x W x H | 4"D x 4"W x 43.5"H |
